DigestAuth

Adding Digest Authentication

BasicAuth

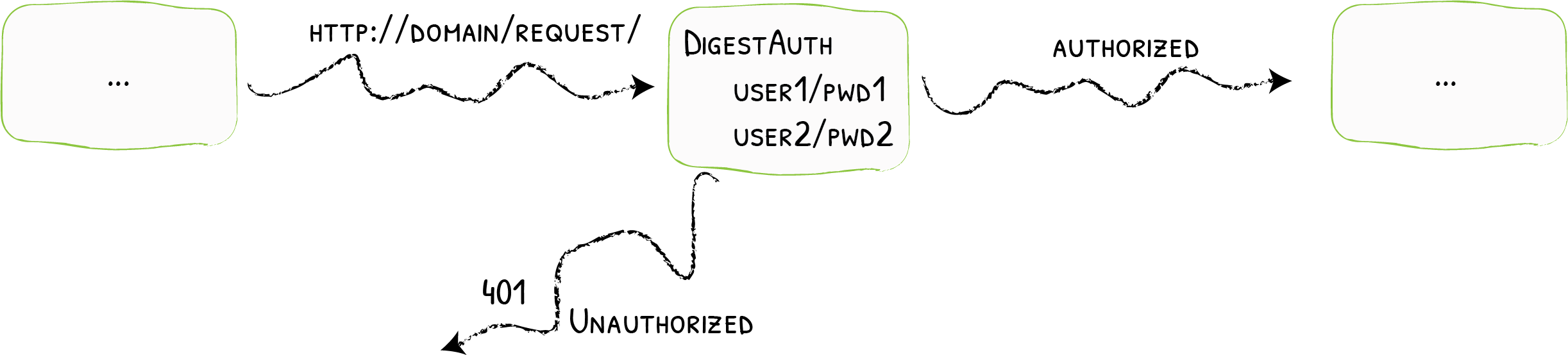

The DigestAuth middleware is a quick way to restrict access to your services to known users.

Configuration Examples

labels:
- "traefik.http.middlewares.test-auth.digestauth.users=test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"
# Declaring the user list
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: test-auth
spec:
  digestAuth:
    users:
    - test:traefik:a2688e031edb4be6a3797f3882655c05
    - test2:traefik:518845800f9e2bfb1f1f740ec24f074e
"labels": {
  "traefik.http.middlewares.test-auth.digestauth.users": "test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"
}
labels:
- "traefik.http.middlewares.test-auth.digestauth.users=test:traefik:a2688e031edb4be6a3797f3882655c05,test2:traefik:518845800f9e2bfb1f1f740ec24f074e"
[http.middlewares]
  [http.middlewares.test-auth.digestAuth]
    users = [
      "test:traefik:a2688e031edb4be6a3797f3882655c05",
      "test2:traefik:518845800f9e2bfb1f1f740ec24f074e",
    ]
http:
  middlewares:
    test-auth:
      digestAuth:
        users:
        - "test:traefik:a2688e031edb4be6a3797f3882655c05"
        - "test2:traefik:518845800f9e2bfb1f1f740ec24f074e"

Tip

Use htdigest to generate passwords.

Configuration Options

users

The users option is an array of authorized users. Each user will be declared using the name:realm:encoded-password format.

Note

If both users and usersFile are provided, the two are merged. The content of usersFile has precedence over users.

usersFile

The usersFile option is the path to an external file that contains the authorized users for the middleware.

The file content is a list of name:realm:encoded-password.

A file containing test/test and test2/test2
test:traefik:a2688e031edb4be6a3797f3882655c05
test2:traefik:518845800f9e2bfb1f1f740ec24f074e

Note

If both users and usersFile are provided, the two are merged. The content of usersFile has precedence over users.

realm

You can customize the realm for the authentication with the realm option. The default value is traefik.

headerField

You can customize the header field for the authenticated user using the headerFieldoption.

Example "File -- Passing Authenticated User to Services Via Headers"

labels:
  - "traefik.http.middlewares.my-auth.digestauth.headerField=X-WebAuth-User"
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: my-auth
spec:
  digestAuth:
    # ...
    headerField: X-WebAuth-User
labels:
  - "traefik.http.middlewares.my-auth.digestauth.headerField=X-WebAuth-User"
"labels": {
  "traefik.http.middlewares.my-auth.digestauth.headerField": "X-WebAuth-User"
}
[http.middlewares.my-auth.digestAuth]
  # ...
  headerField = "X-WebAuth-User"
http:
  middlewares:
    my-auth:
      digestAuth:
        # ...
        headerField: "X-WebAuth-User"

removeHeader

Set the removeHeader option to true to remove the authorization header before forwarding the request to your service. (Default value is false.)
