服务¶

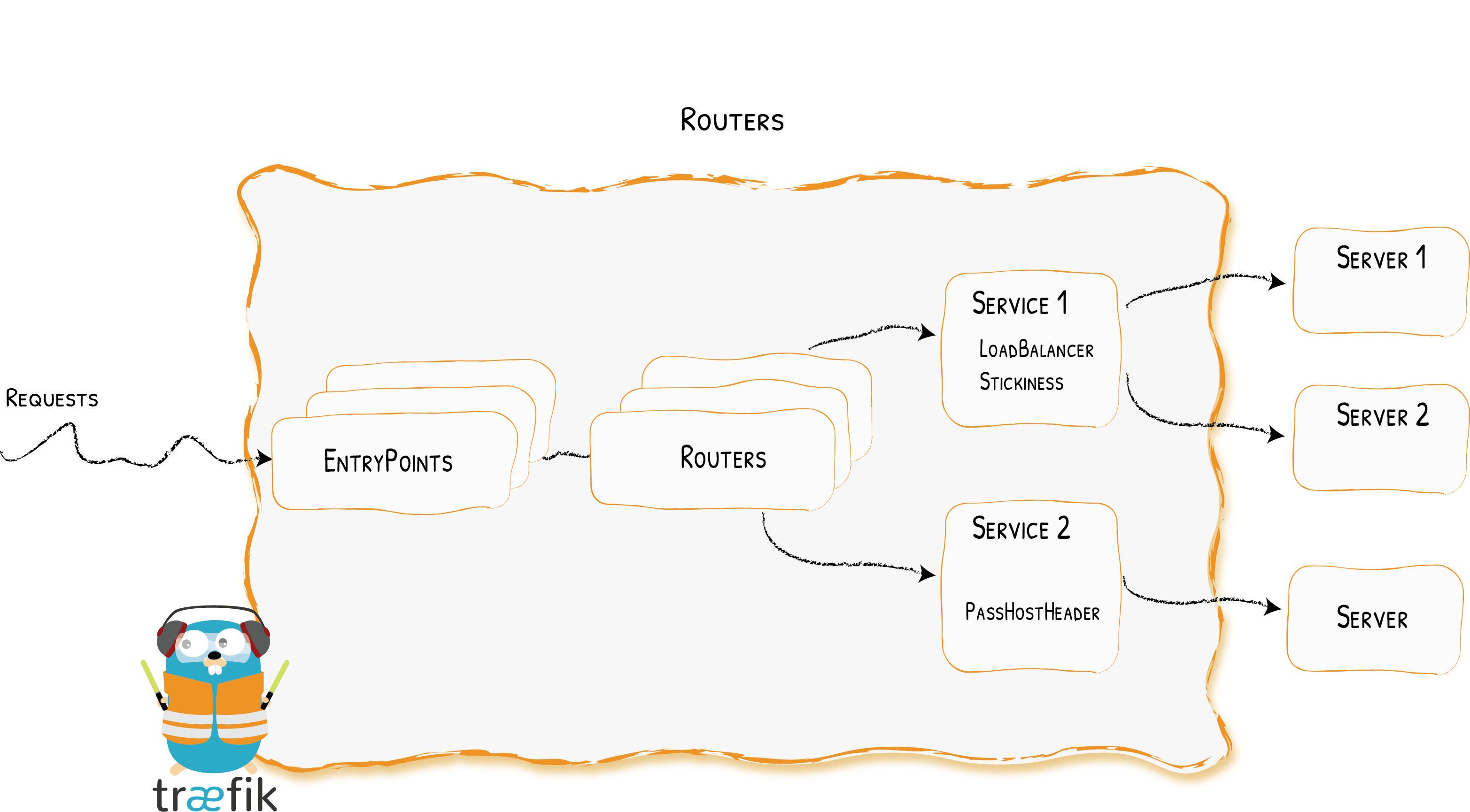

配置如何到达服务

services

该Services负责配置如何到达实际的服务，最终将处理传入的请求。

配置示例¶

使用两个服务器声明HTTP服务 - 使用文件提供程序

TOML

[http.services]
  [http.services.my-service.loadBalancer]

    [[http.services.my-service.loadBalancer.servers]]
      url = "http://private-ip-server-1/"
    [[http.services.my-service.loadBalancer.servers]]
      url = "http://private-ip-server-2/"

YAML

http:
  services:
    my-service:
      loadBalancer:
        servers:
        - url: "http://private-ip-server-1/"
        - url: "http://private-ip-server-2/"

使用两个服务器声明TCP服务 - 使用文件提供程序

TOML

[tcp.services]
  [tcp.services.my-service.loadBalancer]
     [[tcp.services.my-service.loadBalancer.servers]]
       address = "xx.xx.xx.xx:xx"
     [[tcp.services.my-service.loadBalancer.servers]]
       address = "xx.xx.xx.xx:xx"

YAML

tcp:
  services:
    my-service:
      loadBalancer:
        servers:
        - address: "xx.xx.xx.xx:xx"
        - address: "xx.xx.xx.xx:xx"

配置HTTP服务¶

一般¶

目前，LoadBalancer是唯一受支持的HTTP类型Service（见下文）。但是，由于Traefik是一个不断发展的项目，未来将提供其他类型的HTTP服务，这是您必须指定它的原因

负载均衡器¶

负载平衡器能够在多个程序实例之间对请求进行负载平衡

使用两个服务器声明服务（使用负载平衡） - 使用文件提供程序

TOML

[http.services]
  [http.services.my-service.loadBalancer]

    [[http.services.my-service.loadBalancer.servers]]
      url = "http://private-ip-server-1/"
    [[http.services.my-service.loadBalancer.servers]]
      url = "http://private-ip-server-2/"

YAML

http:
  services:
    my-service:
      loadBalancer:
        servers:
        - url: "http://private-ip-server-1/"
        - url: "http://private-ip-server-2/"

服务器¶

服务器声明您的程序的单个实例。该url选项指向特定实例。

Note

服务器中的路径url没有任何效果。如果您希望将请求发送到服务器上的特定路径，请将您配置routers 为使用相应的中间件（例如AddPrefix或ReplacePath）中间件。

一台服务器 - 使用 File Provider

TOML

[http.services]
  [http.services.my-service.loadBalancer]
    [[http.services.my-service.loadBalancer.servers]]
      url = "http://private-ip-server-1/"

YAML

http:
  services:
    my-service:
      loadBalancer:
        servers:
          url: "http://private-ip-server-1/"

负载均衡¶

目前，仅支持循环负载平衡：

负载平衡 - 使用 File Provider

TOML

[http.services]
  [http.services.my-service.loadBalancer]
    [[http.services.my-service.loadBalancer.servers]]
      url = "http://private-ip-server-1/"
    [[http.services.my-service.loadBalancer.servers]]
      url = "http://private-ip-server-2/"

YAML

http:
  services:
    my-service:
      loadBalancer:
        servers:
        - url: "http://private-ip-server-1/"
        - url: "http://private-ip-server-2/"

粘性会话¶

启用粘性会话时，会在初始请求上设置cookie，以跟踪哪个服务器处理第一个响应。在后续请求中，客户端将转发到同一服务器。

粘性和不健康的服务器

如果cookie中指定的服务器变得不健康，则该请求将被转发到新服务器（并且cookie将跟踪新服务器）。

Cookie名称

默认cookie名称是sha1的缩写（例如：）_1d52e。

安全和HTTPOnly标志

默认情况下，创建关联cookie而不使用这些标志。然而，一个可以通过配置改变它。

Adding Stickiness

TOML

[http.services]
  [http.services.my-service]
    [http.services.my-service.loadBalancer.stickiness]

YAML

http:
  services:
    my-service:
      loadBalancer:
        stickiness: {}

Adding Stickiness with a Custom Cookie Name

TOML

[http.services]
  [http.services.my-service]
    [http.services.my-service.loadBalancer.stickiness]
      cookieName = "my_stickiness_cookie_name"
      secureCookie = true
      httpOnlyCookie = true

YAML

http:
  services:
    my-service:
      loadBalancer:
        stickiness:
          cookieName: my_stickiness_cookie_name
          secureCookie: true
          httpOnlyCookie: true

健康检查¶

配置运行状况检查以从负载平衡轮换中删除不健康的服务器。Traefik会考虑你的服务器的健康，只要他们之间的返回状态代码2XX，并3XX以健康检查的要求（进行的每项interval）

以下是运行状况检查机制的可用选项：

path 附加到服务器URL以设置运行状况检查端点。
scheme, 如果已定义，将替换scheme运行状况检查端点的服务器URL
hostname, 如果已定义，将替换hostname运行状况检查端点的服务器URL 。
port, 如果已定义，将替换port运行状况检查端点的服务器URL 。
interval 定义健康检查呼叫的频率。
timeout 定义Traefik在考虑服务器失败（不健康）之前等待健康检查请求的最长持续时间。
headers 定义要发送到运行状况检查端点的自定义标头。

Interval & Timeout Format

Interval and timeout are to be given in a format understood by time.ParseDuration. The interval must be greater than the timeout. If configuration doesn't reflect this, the interval will be set to timeout + 1 second.

Recovering Servers

Traefik keeps monitoring the health of unhealthy servers. If a server has recovered (returning 2xx -> 3xx responses again), it will be added back to the load balacer rotation pool.

Custom Interval & Timeout -- Using the File Provider

TOML

[http.services]
  [http.servicess.Service-1]
    [http.services.Service-1.loadBalancer.healthCheck]
      path = "/health"
      interval = "10s"
      timeout = "3s"

YAML

http:
  servicess:
    Service-1:
      loadBalancer:
        healthCheck:
          path: /health
          interval: "10s"
          timeout: "3s"

Custom Port -- Using the File Provider

TOML

[http.services]
  [http.services.Service-1]
    [http.services.Service-1.loadBalancer.healthCheck]
      path = "/health"
      port = 8080

YAML

http:
  services:
    Service-1:
      loadBalancer:
        healthCheck:
          path: /health
          port: 8080

Custom Scheme -- Using the File Provider

TOML

[http.services]
  [http.services.Service-1]
    [http.services.Service-1.loadBalancer.healthCheck]
      path = "/health"
      scheme = "http"

YAML

http:
  services:
    Service-1:
      loadBalancer:
        healthCheck:
          path: /health
          scheme: http

Additional HTTP Headers -- Using the File Provider

TOML

[http.services]
  [http.services.Service-1]
    [http.services.Service-1.loadBalancer.healthCheck]
      path = "/health"

      [http.services.Service-1.loadBalancer.healthCheck.headers]
        My-Custom-Header = "foo"
        My-Header = "bar"

YAML

http:
  services:
    Service-1:
      loadBalancer:
        healthCheck:
          path: /health
          headers:
            My-Custom-Header: foo
            My-Header: bar

配置TCP服务¶

一般¶

目前，LoadBalancer是唯一受支持的TCP类型Service。但是，由于Traefik是一个不断发展的项目，未来将提供其他类型的TCP服务，这是您必须指定它的原因。

负载均衡器¶

负载平衡器能够在多个程序实例之间对请求进行负载平衡。

Declaring a Service with Two Servers -- Using the File Provider

TOML

[tcp.services]
  [tcp.services.my-service.loadBalancer]
    [[tcp.services.my-service.loadBalancer.servers]]
      address = "xx.xx.xx.xx:xx"
    [[tcp.services.my-service.loadBalancer.servers]]
       address = "xx.xx.xx.xx:xx"

YAML

tcp:
  services:
    my-service:
      loadBalancer:
        servers:
        - address: "xx.xx.xx.xx:xx"
        - address: "xx.xx.xx.xx:xx"

Servers¶

服务器声明您的程序的单个实例。该address选项（IP：端口）指向一个特定的实例。

A Service with One Server -- Using the File Provider

TOML

[tcp.services]
  [tcp.services.my-service.loadBalancer]
    [[tcp.services.my-service.loadBalancer.servers]]
      address = "xx.xx.xx.xx:xx"

YAML

tcp:
  services:
    my-service:
      loadBalancer:
        servers:
          address: "xx.xx.xx.xx:xx"
